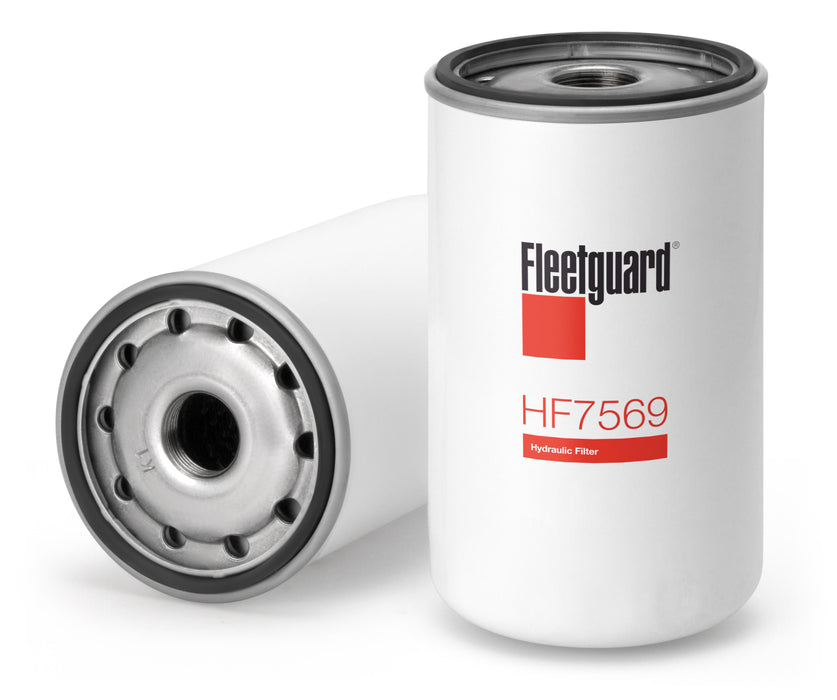

HF7569 Hydraulic Filter

HF7569 Hydraulic Filter

by FLEETGUARD
$0.00 - $0.00
$0.00
$30.54
$30.54 - $30.54
$30.54

Net Weight:2,01(lbs)  0,91(kg)

Volume(m3) :0,0026

Units per package :12

OEM OEM Code
AC PF2203
BALDWIN BT470
CASE 1931127
CASEIH 84160465
FIAAM FT4921
FIATAGRI 1930918
FIATAGRI 5136877
FIATALLS 5113297
FRAM PH4469
HASTINGS HF928
MANN FILTER W11502
NEW HOLLAND 1909130
SAME 244192700
SAME 244194100
VAPORMAT VPJ4512

Specification

Thread Size1 1/8-16 UN-2B
Largest OD4.25 inch
Gasket OD3.945 in
StandpipeNO
TWA MICRON @ BETA=2060 micron
Length7.34 inch
Gasket Inside Diameter3.63 inch
Seam OD4.331 in
TWA MICRON @ BETA=235 micron
TWA MICRON @ BETA=7575 micron

.
