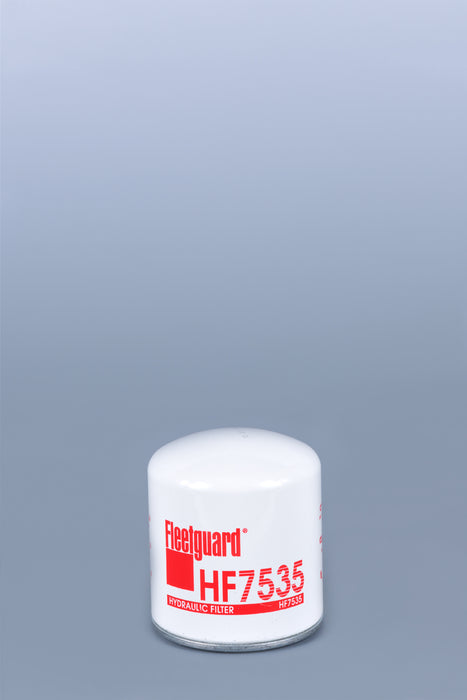

HF7535 Hydraulic Filter

HF7535 Hydraulic Filter

by FLEETGUARD
$0.00 - $0.00
$0.00
$37.94
$37.94 - $37.94
$37.94

Net Weight:1,48(lbs)  0,67(kg)

Volume(m3) :0,0014

Units per package :12

OEM OEM Code
SFH1696
COOPERS HSM6197
CROSLAND 7531
DONALDSON P761108
FIAAM FT5433
FILTRON OP668
FRAM PH8798
HENGST H24W05
LUBER FINER LFH8095
MAHLE HC113
MANN FILTER W93014
SCANIA 1301696
SCANIA 1768402
UFI 8005900

Specification

BPV OPENING DP29.0076 PSI
Length4.45 inch
Gasket Inside Diameter2.46 inch
Seam OD3.858 in
TWA MICRON @ BETA=204 micron
TWA MICRON @ BETA=756 micron
Length / Overall Height4.29 inch
Thread SizeM23 X 1.5-6H INT
Largest OD3.70 inch
Gasket OD2.815 in
StandpipeNO
TWA MICRON @ BETA=2008 micron
Media TypeMicroglass
Pressure ValveYes

.
